Gallery of Quality Drilling Rigs in Australia

Explore Our Custom-Designed Drilling Rigs & Equipment

Please have a look at our gallery of drilling rigs and equipment; we have a wide variety of machines up for hire. A lot of our equipment has been designed and made in our very own workshop, and the team at Fenwick Drilling loves using them. Years of experience have enabled our operators to utilise these machines in the best way possible, minimising downtime and maximising work efficiency.

A large hole in the ground next to a house.

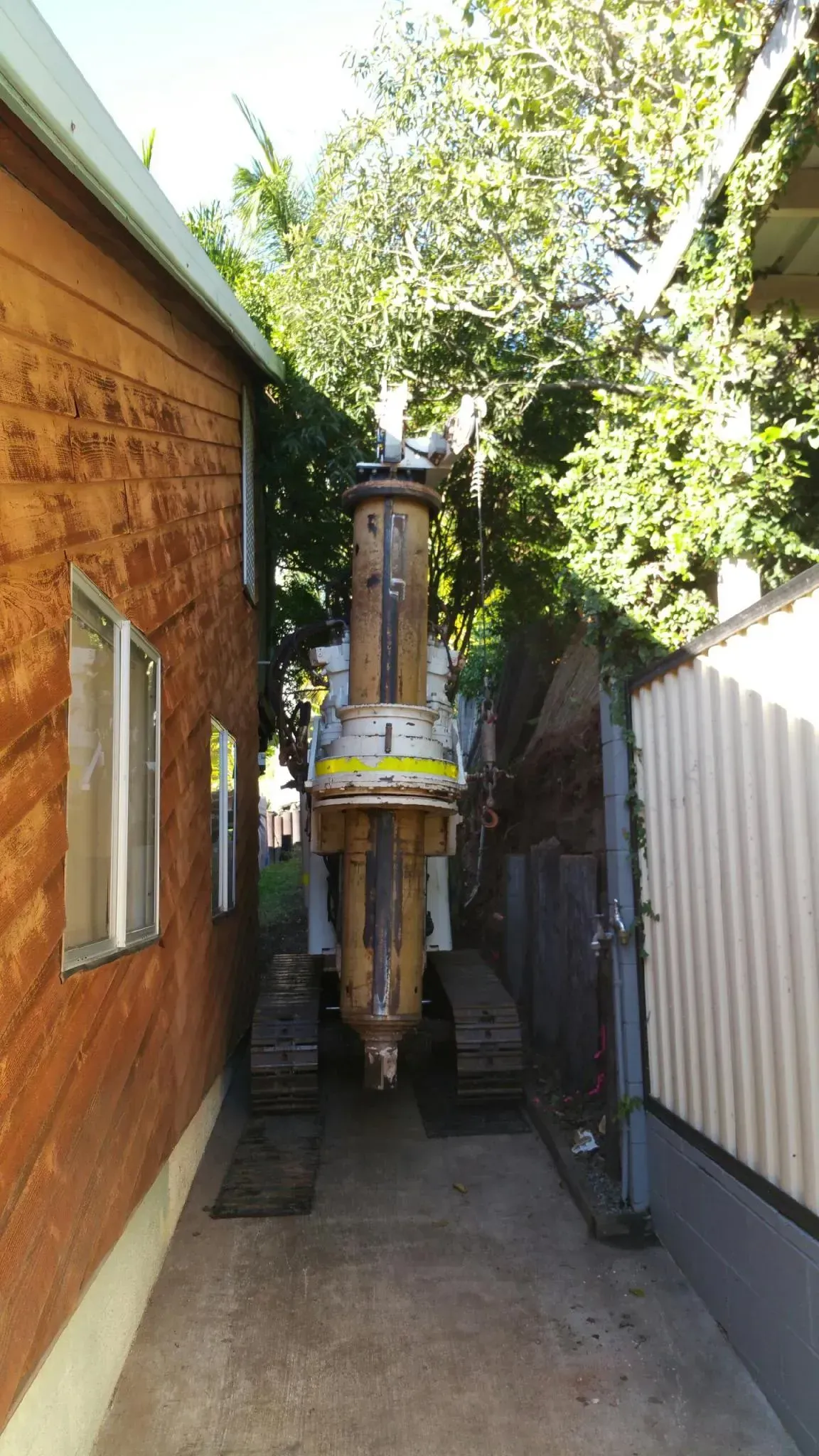

A large machine is parked in a narrow alleyway between two buildings.
A machine is sitting on top of a pole in a building.

Drilling Solutions for Challenging Sites

With our impressive range, we can easily work on the trickiest sites around, and with specialised drilling heads, we can drill to your requirements without trouble. Give Fenwick Drilling a call if you have any questions about our drilling rigs; we’ll be happy to answer and provide additional advice.

MAIT HR260 Track Machine

  • 86t/30-tonne torque
  • Drill up to 3m diameter and 30m depth
  • All civil and industrial drilling works
  • We can supply qualified boilermakers - all welding plants
  • Tremmie pipes and rack to pour

Fenwick's Latest Machinery

Kelly bar drill rig and down-the-hole hammer and compressors

  • Down the hole hammer - down to 8m
  • Kelly bar drill rig - drill diameter to 1200mm - depth to 20m

Low Head Height Machines MAIT HR130 THD Track Machine

  • Torque upgraded to 18t
  • Piling mode drills 30m
  • Drills up to 1.5m diameter
  • Low head height drills up to 20m in depth
  • Mast height 7.3m
  • Comes fully assembled to the site

MAIT EC35 & MAIT Baby Drill

Restricted access work and low head height – for drilling in confined spaces

MAIT EC35 TRACK MACHINE

  • 6t torque
  • 5.2m mast height
  • Interlocking Kelly bar
  • Drills to 16m in depth
  • Drills up to 900mm diameter

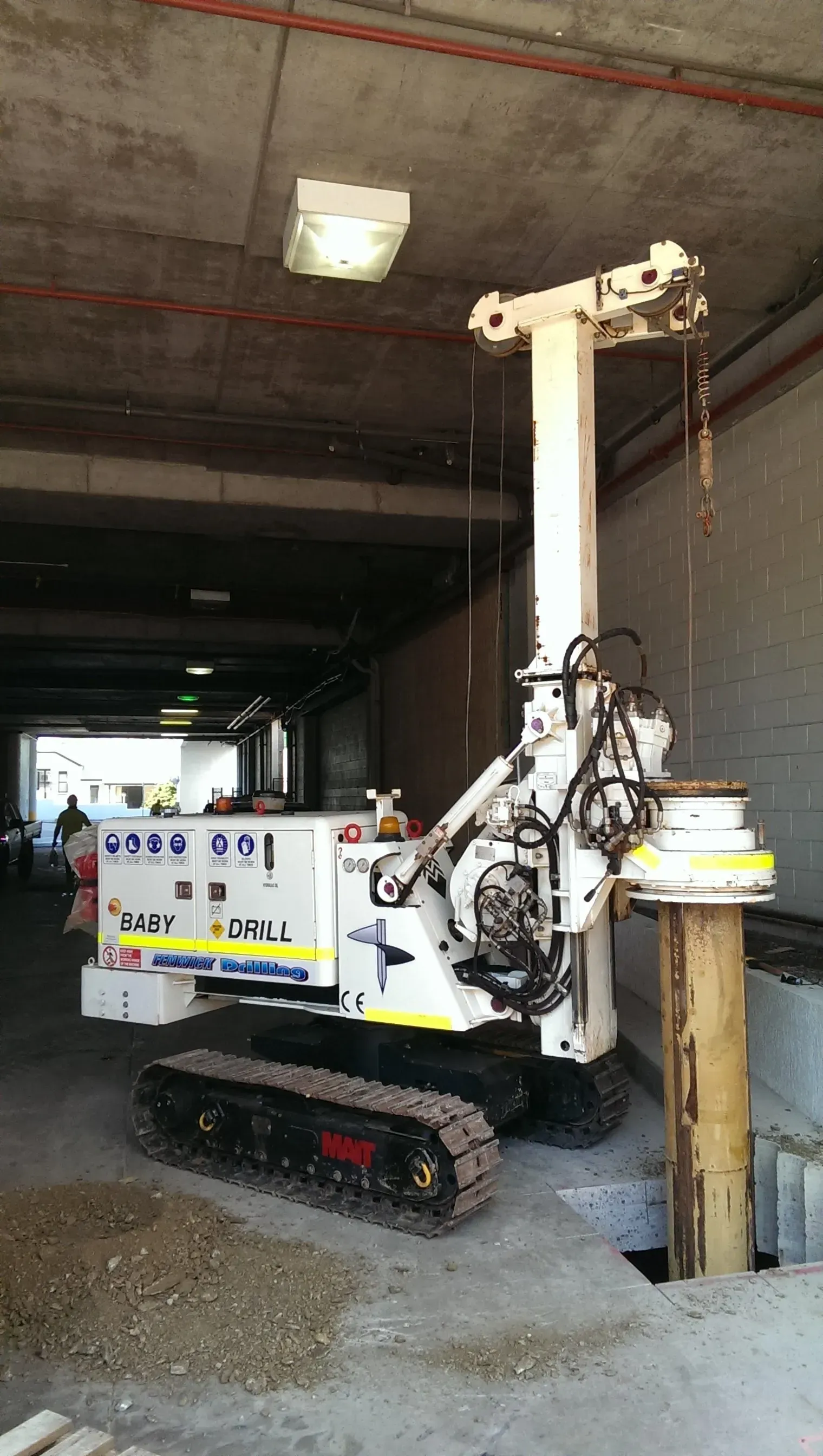

MAIT BABY DRILL

  • Remote control MAIT baby drill - 4.5t torque
  • Drilling up to 900mm in diameter and 15m in depth
  • 8m depth locking height: 3.4m bar
  • 15m depth locking height: 4.2m bar
  • Ideal for confined spaces
  • Transported by truck
  • Arrives at the site fully assembled
  • Specialised augers, core barrels, and clean-out buckets

Truck Mounted Rubber Tyre Drilling Rigs

 Watsons, 480 Pengos, Fenwick rigs

  • From 300mm to 1.800mm in diameter and up to 18 metres in depth
  • Specially designed range of augers, clean-out buckets and core barrels
  • All foundation drilling throughout Australia
  • Pre-drilling for pile works

Excavators - For All Your Excavation Needs

  • 10t to 36t excavators
  • Drilling from 300mm to 1.200mm in diameter
  • All attachments
  • Specialised drilling heads
  • Full range of buckets
  • Steel liner works
  • Pre-drilling for wick holes; for dewatering of sand fill
  • Drilling on unstable ground

Other Equipment

  • Vibrating hammers
  • Tremmie tubes
  • Steel liners

Inventory Continued Excavators

Hitachi 36T excavator with specialised drilling head - unit 36E

  • 1 x 36T excavator
  • PHD digger unit
  • Drill diameter up to 1200mm
  • Drill depth up to 8m

Explore our gallery to see the range of specialised drilling equipment we offer.

For more information or to discuss your project needs, call us on 07 3800 8311 today!
